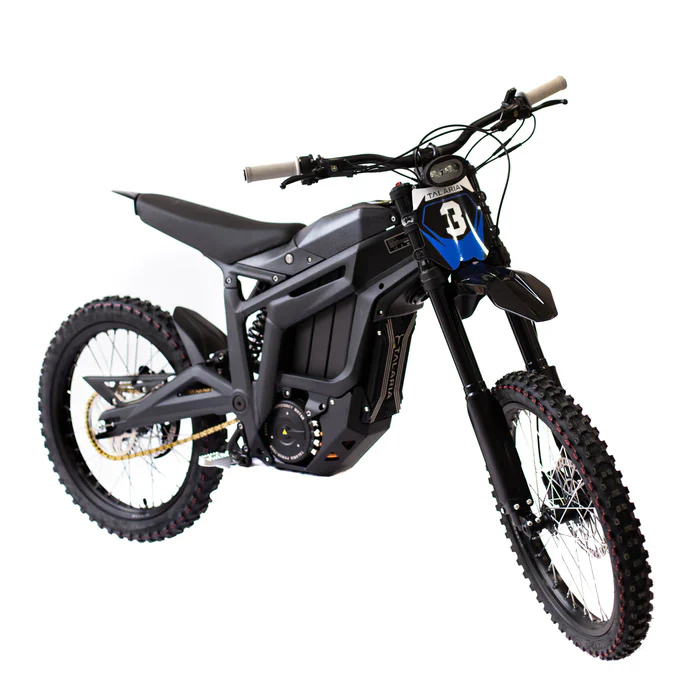

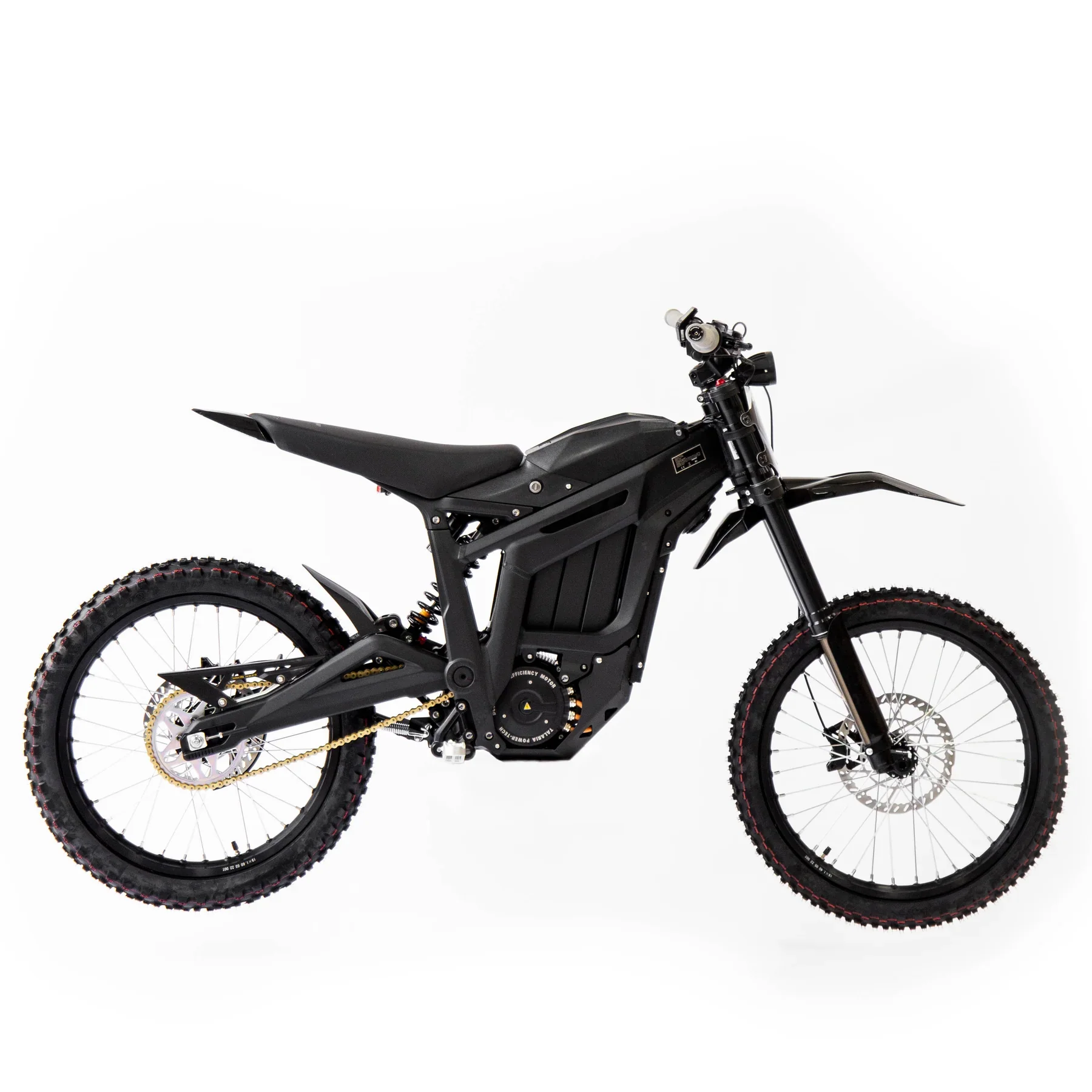

Talaria Sting R MX4 - Black Frame

The next-gen Talaria Sting R MX4 takes the CAD designed lightweight frame design and intelligent gear drive of its predecessor to the next level. With a maximum power output of 8KW and extended range, improved torque, maneuverability, and low noise operation, this model is ready to exceed expectations.

Highlights include peak power up to 8KW; 45AH improved battery for best-in-class range and battery life; gearbox for silent, reliable power transmission; stronger frame & swing arm; adjustable regenerative braking; fast charge time (3 hours); and improved battery connector.

BUILT FOR YOUR NEXT ADVENTURE

2023 UPGRADES

TECH SPECS

VEHICLE

Chassis Material: 6061 T4 & T6 Aluminium Alloy
Process Method: Forged by 6000 Tons Pressure
Surface Method: Anodizing
Headlight: LED
Front Fork: Fastace / Talaria Factory
Rear Shock: Fastace / HT / Talaria Factory
Wheel Size: 19”
Tire: FR 70/100-19 / RR 80/100-19
Max. Range: 74.56mi @ 15.53mi/h
Net Weight: 145.05lb / 66 Kg (Including Battery)
Vehicle Dimension: 1880mm x 770mm x 1088mm
Seat Height: 840mm
Wheelbase: 1250mm
Handlebar Length: 760mm
Ground Clearance: 300mm

MOTOR

Motor type: DC IPM (Interior Permanent Magnet)
Mounting Position: Middle of the Frame
Weight: 7.0 kg
Motor Ext. Diameter: 180mm
Peak Efficiency: 92%
Cooling Method: Air Cooled

CONTROLLER

Controller Type: FOC
Weight: 2 Kg
Dimension: 248mm x 128mm x 50mm
Peak Efficiency: 92%
Highest Work Temp: 100°

POWER SYSTEM

Nominal Voltage: 60V (DC)
Rated Power: 4KG (Factory limited to 800W)
Maximum Speed: 85 Km/h (Factory limited to 32 Km/h)
Nominal Torque: 45 N.M

TRANSMISSION

Gear Ratio: 8.35 (44T) / 9.18 (48T)
1st Transmission: Gearbox
2nd Transmission: Chain

ELECTRONIC

Battery Pack: 60V 45AH
Battery Size: 170mm x 140mm x 380mm
Battery Weight: 12.85 KG
Battery Cells: LG Brand 21700 Cell (5000 MAH/Cell)
Speedometer: Speed / Battery Level, Voltage, cycle / Odometer
Regen Adjustement: 4 Levels Adjustable in the Speedometer
